Gantt Vessel View

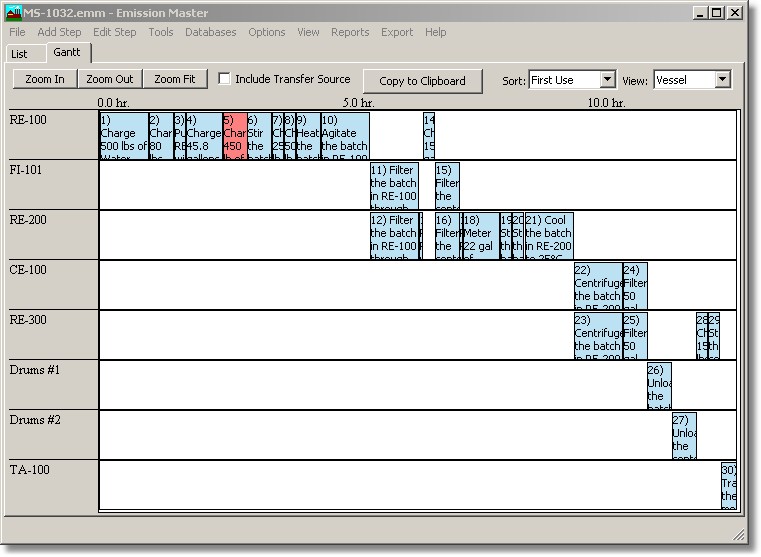

       In the Gantt Vessel View, the process model is shown graphically where each block represents a single process activity.  The horizontal axis is in hours and vertical axis list the vessels that were used in the process.  Vessels can be switched from sorted from First Use to alphabetically by Name using the View drop down control.  Process Activity #5 is in focus as indicated by the red color.  Once a process activity has been placed in focus then it may be edited by double clicking with the computer mouse or by way of the Edit Step menu.



EM Gantt Vessel View
